Verge mowers with cutting widths from 1.60 to 2.30 m
Find Your Nearest Dealer Download Brochure
To improve on-the-job flexibility and reduce mechanical stress, all SPRING-LONGER 80 Series models are equipped with a double hydraulic safety function. Thanks to the specificity of the cylinder, the mower unit can retract rearwards in the event of a frontal collision, and also forward if an unintentional reversing manoeuvre is made. Resetting is automatic thanks to the 3 accumulators fitted on the machine as standard.
The uniform design features reassembled, non-tubular components and very high yield steel. It ensures greater mechanical strength while reducing the weight of the structure. All joints are mounted on cell-type bushes.

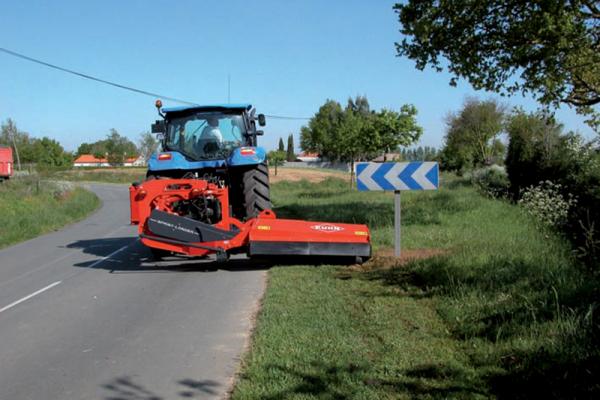

The hydraulic pivot design allows for a large 900 mm horizontal offset. The mower unit can avoid obstacles easily and effectively. The pivot also makes it possible to work behind part of the tractor wheel on narrow paths. The tractor-machine assembly is more compact, providing maximum safety for road users.
For maximum versatility, the SPRING-LONGER 80 Series is equipped with a hydraulic lift.
In “flat mowing” and “bank” mode, the lifting cylinder automatically compensates for humps and hollows along the verge. It therefore complements the mower unit slewing cylinder. The mower head lifts, lowers and tilts without any operator action. In “ditch” mode, the vertical offset function lifts the mower unit 600 mm. The universal joint works in a good position with higher ground clearance. The 70° head angle can therefore be used to its full potential. In “clearing” mode, it is possible to mow above road level.
High mowing rates can be achieved due to the geometry of the mower head developed without a “bottleneck”, and its 120 hp gearbox .
To ensure durability, the head friction pads are made of hardened steel, whereas the casing is designed with a double-thick steel plate. The rotor is equipped with wire protection baffles for better protection of the rotor half-bearing. Four automatically tensioned cog-type V-belts drive the rotor. The speed is changed (540 or 1,000 rpm) by simply reversing the pulleys.
The high rotor rotation speed combined with the geometry of the casing and the shape of the flails provides:
| S 1680 RPF | S 1680 RPFL | 1680 RPL | S 2080 RPFL | S 2080 RP | S 2080 RPF | S 2080 RPL | S 2380 RPL | |
|---|---|---|---|---|---|---|---|---|
| Position of the mower unit | Front right mower unit | Front right mower unit | Front right mower unit | Front right mower unit | Front right mower unit | Front right mower unit | Front right mower unit | Front right mower unit |
| Recommended use | Grass verges and scrub along roadsides, canals and ditches | Grass verges and scrub along roadsides, canals and ditches | Grass verges and scrub along roadsides, canals and ditches | Grass verges and scrub along roadsides, canals and ditches | Grass verges and scrub along roadsides, canals and ditches | Grass verges and scrub along roadsides, canals and ditches | Grass verges and scrub along roadsides, canals and ditches | Grass verges and scrub along roadsides, canals and ditches |
| Horizontal reach (m) | 3.50 | 3.50 | 3.50 | 3.90 | 3.90 | 3.90 | 3.90 | 4.20 |
| Horizontal travel (mm) | Pivot 900 | Pivot 900 | Pivot 900 | Pivot 900 | Pivot 900 | Pivot 900 | Pivot 900 | Pivot 900 |
| Vertical travel with leg (mm) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Hydraulic mower unit break-back safety with automatic reset | Forward safety | Forward safety | Forward and reverse safety | Forward safety | Forward and reverse safety | Forward safety | Forward and reverse safety | Forward and reverse safety |
| Transport height (m) with 0.5 m ground clearance | 2.60 | 2.60 | 2.60 | 3.00 | 3.00 | 3.00 | 3.00 | 3.30 |
| Transport width (m) | 1.91 | 1.91 | 1.91 | 1.91 | 1.91 | 1.91 | 1.91 | 1.91 |
| Lighting system | As standard (with work lights) | As standard (with work lights) | As standard (with bumper) | As standard (with work lights) | As standard (with bumper) | As standard (with work lights) | As standard (with bumper) | As standard (with bumper) |
| Max. ditch angle (°) | -70 | -70 | -70 | -70 | -70 | -70 | -70 | -70 |
| Max. bank angle (°) | +90 | +90 | +90 | +90 | +90 | +90 | +90 | +90 |
| Machine weight (kg) | 1285 | 1285 | 1285 | 1365 | 1365 | 1365 | 1365 | 1425 |
