The PROLANDER is a versatile cultivator with vibrating tines. It can perform multiple operations, from shallow stubble cultivation to seedbed preparation in a second pass. It is the ideal tool for min-till farming.
Find Your Nearest Dealer Download Brochure
The PROLANDER is equipped with 5 rows of vibrating tines and the 68 cm underframe clearance guarantees the work quality even in crop residue. The PROLANDER benefits from an increasing clearance between its 5 rows of tines, from 60 cm in the front, 70 cm in the centre and 80 cm at the rear of the machine. This unique design improves the flow of soil through the machine and imrpoves the incorporation of residues.
The PROLANDER meets the needs of farms who are looking for a high-performance soil tillage implement with a low horse power requirement. 25 horsepower per metre is sufficient to carry out a quality stubble cultivation with the PROLANDER. The low power demand reduces fuel consumption and extends the life of wear parts.
The mixing quality is strongly related to the working speed, so you will get a better soil / straw mixture at speeds up to 15km/h.
The PROLANDER is equipped as standard with hydraulic adjustments from the cab. The working depth is continuously adjustable and lifts and lowers parallel to the ground. The levelling board at the front of the machine can also be adjusted hydraulically from the cab. It flattens the ploughed land before the tines.
All these adjustments ensure immediate adaptation to ground conditions and reduce the power demand.

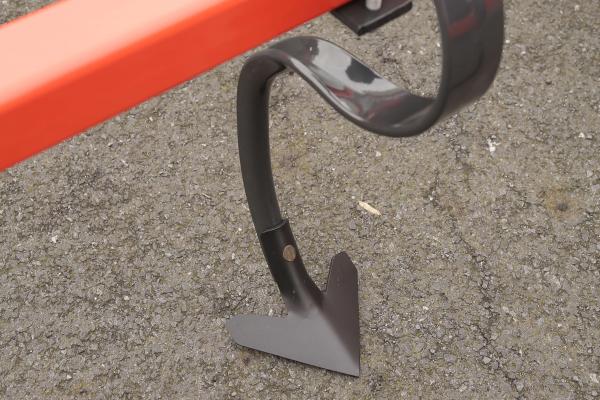

The PROLANDER is equipped with tines held on by a single large bolt. Switching from stubble cultivation with the goose foot-share to seedbed preparation with the straight share is very simple and quick. With a 50% time saving during changes, idle times are significantly reduced and field productivity is increased.
Wearing parts are a key element when purchasing a tillage implement: Cost, replacement time, design, work efficiency, etc.
The goose-foot share allows for a shallow stubble cultivation from 3 to 7 cm deep. This mixes the entire top layer to stimulate weed germination and also destroy the weeds.
The reversible straight share is ideal for preparing your soils from 5 to 12 cm deep with a low power requirement. The shares are heat treated to increase service life by 20%. This straight share is also forged to give it’s particular shape with greater thickness on the work area and to retain its penetrating “V” shape.
The PROLANDER has agronomic benefits in the many different ways it can be used. In seedbed preparation it brings the following benefits:
In shallow stubble cultivation and seed bed preparation, the PROLANDER offers many benefits:
In secondry stubble cultivations, the PROLANDER ensures quality work by:
The PROLANDER cultivator can be equipped with three different types of packer:
The PROLANDER can be equipped with the SH 600 small seed drill for seeding crop covers (mustard, clover, ryegrass, cereals) while cultivating.
Crop covers are recognised for their agronomic, environmental and economic benefits. You can achieve time savings of 50% compared with a conventional establishment system (stubble cultivation + sowing + rolling).
The SH 600, with a 600-litre hopper capacity, is equipped with the same distribution system as our other seeders for increased seeding accuracy. The splash plates are positioned in front of the roller for an even distribution and optimal soil to seed contact.
Simple and precise settings are made from the cab via the QUANTRON S-2 box that enable you to:
Modulate the seed rate manually or electronically by GPS;
Monitor the seed level, blower and metering unit speeds.
The PROLANDER with the SH 600 seed drill can help you acheive high work rates and low seeding costs.
| Models | 400R | 500R | 600R | 6000 | 7500 |
|---|---|---|---|---|---|
| Working width (m) | 3,75 | 4,95 | 5,85 | 6,00 | 7,50 |
| Transport width (m) | 2,50 | 2,50 | 2,50 | 2,83 | 2,83 |
| Transport height (m) | 2,22 | 2,84 | 3,27 | 3,25 | 4 |
| Min. tractor power (hp) | 73/100 | 92/125 | 110/150 | 110/150 | 140/190 |
| Max. power tractor (kW/hp) | 103/140 | 129/175 | 155/210 | 175/240 | 220/300 |
| Number of tine rows | 4 | 4 | 4 | 5 | 5 |
| Number of tines | 25 | 33 | 39 | 39 | 49 |
| Type of tine | Vibrating 'S' tines 70x12mm | Vibrating 'S' tines 70x12mm | Vibrating 'S' tines 70x12mm | Vibrating 'S' tines 70x12mm | Vibrating 'S' tines 70x12mm |
| Underbeam clearance (mm) | 600 | 600 | 600 | 600 | 600 |
| Tine spacing (mm) | 155 | 155 | 155 | 155 | 155 |
| Distance between tine on the same row (mm) | 600 | 600 | 600 | 680 | 680 |
| Inter-beam clearance (mm) | 500 (between rows 1-2) / 600 (between rows 2-3) / 500 (between rows 3-4) | 500 (between rows 1-2) / 600 (between rows 2-3) / 500 (between rows 3-4) | 500 (between rows 1-2) / 600 (between rows 2-3) / 500 (between rows 3-4) | 600 (rows 1-2), 700 (rows 2-3) and 800 (rows 3-4-5) | 600 (rows 1-2), 700 (rows 2-3) and 800 (rows 3-4-5) |
| Linkage | CAT 2/3 | CAT 2/3 | CAT 2/3 | CAT 3 and CAT 3/4 crossbar, 40mm ring, K80 linkage ball, Swivel ring 42/53/71mm | CAT 3 and CAT 3/4 crossbar, 40mm ring, K80 linkage ball, Swivel ring 42/53/71mm |
| Weight (kg), with tube notched bar roller 400/320 | 1710 | 2050 | 2260 | / | / |
| Weight (kg), with double U | / | / | / | 4500 | 5075 |
| Available rollers | Tube, T-Ring, Tube notched bar 400/320mm, V-Liner (only for the 4 and 5 metres models) | Tube, T-Ring, Tube notched bar 400/320mm, V-Liner (only for the 4 and 5 metres models) | Tube, T-Ring, Tube notched bar 400/320mm | Double tube/notched bar roller 400/320 and 550/420, Double U roller | Double tube/notched bar roller 400/320 and 550/420, Double U roller |
| Seed drill option | / | / | / | SH 600 and TF Kit | SH 600 and TF Kit |
