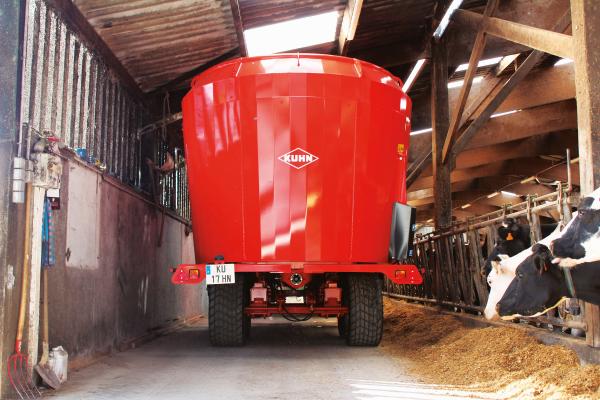

The PROFILE 2 CL mixers have 2 vertical augers, a large hopper and feed out via a cross-conveyor. Available in 18 to 34 m3 capacities, these machines are suited to herds of between 90 and 265 cattle.
Find Your Nearest Dealer Download Brochure
To ensure the long-term performance of your PROFILE 2 DL mixer wagon, the K-NOX augers are designed to substantially reduce wear and tear caused by abrasion and silage acidity.
The wear and tear which affects the mixing auger over the years, will be spread evenly across the whole surface of the mixing auger and also on the central cone. That’s why K-NOX mixing augers are built entirely from the same alloy: auger, cone and scraper.
K-NOX is an alloy containing:
The K-NOX technology will increase the resale value of your machine should you decide to sell it. Second-hand mixers are valued based on the wear of the augers, rather than their age. A machine whose main components are still in perfect condition will naturally retain a higher resale value.
The double-pitch angle of the auger enables quick breakdown of feed, no matter how full the machine already is.
To reduce power consumption, the PROFILE range is equipped with asymmetric knives which have a “self-cleaning” effect and also have a progressive-cutting knife edge for constant torque transfer. The continuous auger helix naturally moves the fodder from the bottom to the top of the tub for even mixing with no forced movements, reducing fuel consumption during the mixing process.
The auger material and design has been selected to provide maximum resistance to wear.
The machine transmission is made up of a two-stage bearing therefore even during breakdown of a whole bale, stress is absorbed.
The combination of the pre-stressed subframe and the solid auger base provides maximum resistance to the load bearing in the bottom of the machine.
The unit is fitted on a collar which reaches up to approximately half the auger height, thus protecting the transmission from lateral forces exerted on the auger.
The height/width ratio of the mixing tub places the mixers in the PROFILE 2 CL range firmly among the most compact solutions on the market.
The integrated chassis reduces overall height, while retaining excellent ground clearance. For example, the PROFILE 26 m3 unit stands 3.01 m tall.
Precision in small mixtures and accuracy for large tonnages.
The weighing system on the PROFILE 2 DL-CL-PLUS range is designed with load cells integrated into a cradle between the axle and the tub. The load cells are positioned in the direction of travel of the machine, not perpendicularly. None of the constraints related to transport affect the structure of the load cells.
The sensitivity of the 63.50 mm diameter load cells is much better than for 80 mm load cells. Small mixtures (pre-mixes of a few dozen kilograms) will be weighed and managed with greater precision.
The large number of load cells (five in total for the PROFILE 2 DL-CL-PLUS range) improves the weighing accuracy for even the heaviest mixtures (mixtures of fodder and feed with a low percentage of dry matter).
You can choose one of these digital devices to run the solutions offered along with the weighing terminals. You can take your new assistant with you everywhere! You’ll be able to control your mixer weighing system during loading and feeding, but also from your office.
The 2 applications KUHN Datamix VIEW and KUHN Datamix CONTROL are pre-installed on your weighing assistant. You’re bound to have all your needs met with the easy-to-use secondary display unit (KUHN Datamix VIEW) and the application that lets you program and perform all the functions of your mixer’s weighing unit from your assistant (KUHN Datamix CONTROL). You can access all the weighing data within a communication range of 90 m around your machine. The signal is automatically reset when you re-enter the range.
For each member of the herd to get their maximum feed intake, the feed-out of the mixed ration must be evenly mixed and distributed across the whole length of the feed passage. It’s important to reduce competition for feed between livestock in the same pen. All animals must get their fair share of quality mixed rations!
When the animals return to the buildings after grazing, providing a homogeneous ration is the best solution to avoid them pushing and shoving for feed.
The PROFILE range features an impressive selection of feed-out solutions to ensure distribution of the rations in all the types of buildings. Whether you have sheds with no separate exit, troughs with retaining rims or very narrow feed passages, feeding tables on both sides of the passage requiring simultaneous distribution, or other constraints requiring distribution from the rear of the machine, you will find what you need in the PROFILE range.
The cross-conveyor can be positioned at the front or rear of the PROFILE range.
As standard, feed can be distributed on the left or right-hand side. The conveyor is driven by a hydraulic motor at each end guaranteeing perfect operation regardless of the rotation direction.
The PVC belt ensures that fodder doesn’t travel back underneath the belt. The feed passage always remains clean after distribution.
As an option, the cross-conveyor can be hydraulically offset by 250 mm to the left or the right of the machine: ideal for keeping fibrous rations away from the tyres of the mixer and getting the fodder closer to the feed barrier!
The FLEXILIFT conveyor is a new alternative to cross-conveyors. It allows for delivery into high troughs (1.200 mm) without protruding from the mixer wagon. FLEXILIFT is available as an option on all PROFILE CL models in the range.
The angle of the belt will depend on the degree of extension: one simple control takes care of both movements.
The FLEXILIFT conveyor is designed with a continuous belt. There is no product loss in the feed passage, unlike standard tilting conveyors and cross-conveyors, which have joints.
The FLEXILIFT conveyor is reversible and symmetrical. Depending on which side you want the raised conveyor on, your KUHN authorised dealer can easily reverse the conveyor during start-up.
| PROFILE 18.2 CL | PROFILE 20.2 CL | PROFILE 22.2 CL | PROFILE 24.2 CL | PROFILE 26.2 CL | PROFILE 28.2 CL | PROFILE 30.2 CL | PROFILE 34.2 CL | |
|---|---|---|---|---|---|---|---|---|
| Capacity (m3) | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 34 |
| Mixing system | 2 vertical augers | 2 vertical augers | 2 vertical augers | 2 vertical augers | 2 vertical augers | 2 vertical augers | 2 vertical augers | 2 vertical augers |
| Height of mixing auger (mm) | 900 | 900 | 900 | 900 | 900 | 1,100 | 1,100 | 1,300 |
| Minimum PTO power requirement kW (hp) | 66 (90) | 70 (95) | 73 (100) | 81 (110) | 85 (115) | 88 (120) | 92 (125) | 95 (130) |
| PTO speed (min-1) | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
| Output mini/maxi (l/min) at 180 bar (pressure required) | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 |
| Minimum tractor hydraulic requirement with direct control | 1 DA for door, 1 DA for cross conveyor, 1 DA for hydraulic jack and 1 DA per additional function | 1 DA for door, 1 DA for cross conveyor, 1 DA for hydraulic jack and 1 DA per additional function | 1 DA for door, 1 DA for cross conveyor, 1 DA for hydraulic jack and 1 DA per additional function | 1 DA for door, 1 DA for cross conveyor, 1 DA for hydraulic jack and 1 DA per additional function | 1 DA for door, 1 DA for cross conveyor, 1 DA for hydraulic jack and 1 DA per additional function | 1 DA for door, 1 DA for cross conveyor, 1 DA for hydraulic jack and 1 DA per additional function | 1 DA for door, 1 DA for cross conveyor, 1 DA for hydraulic jack and 1 DA per additional function | 1 DA for door, 1 DA for cross conveyor, 1 DA for hydraulic jack and 1 DA per additional function |
| Minimum tractor hydraulic requirement with electric control (optional) | 1 SA with free return | 1 SA with free return | 1 SA with free return | 1 SA with free return | 1 SA with free return | 1 SA with free return | 1 SA with free return | 1 SA with free return |
