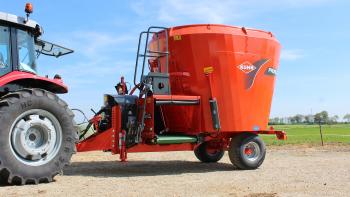

The PROFILE 1 CL mixers have 1 vertical auger, a large hopper and feed out via a cross-conveyor. Available in 9 to 15 m3 capacities, these machines are suited to herds of between 45 and 110 cattle.
Find Your Nearest Dealer Download Brochure
The largest capacity with the lowest height on the market!
These vertical single auger mixer wagons offer a new solution for all farmers with difficult to access buildings and/or who need a variety of distribution configurations.
Compact size is the key feature of these PROFILE single auger mixer wagons. The tub geometry enables larger capacities at lower heights, for example the 13 m3 model comes in at just under 3 m overall height.
The double-pitch angle of the auger enables quick breakdown of feed, no matter how full the machine already is.
To reduce power consumption, the PROFILE range is equipped with asymmetric knives which have a “self-cleaning” effect and also have a progressive-cutting knife edge for constant torque transfer. The continuous auger helix naturally moves the fodder from the bottom to the top of the tub for even mixing with no forced movements, reducing fuel consumption during the mixing process.
The auger material and design has been selected to provide maximum resistance to wear.
The machine transmission is made up of a two-stage bearing therefore even during breakdown of a whole bale, stress is absorbed.
The combination of the pre-stressed subframe and the solid auger base provides maximum resistance to the load bearing in the bottom of the machine.
The unit is fitted on a collar which reaches up to approximately half the auger height, thus protecting the transmission from lateral forces exerted on the auger.
Save time with the PROFILE single auger range designed to accelerate distribution speed. The doors are 1100 mm wide, which is 60% of the auger diameter. This unbeatable ratio guarantees fast, regular distribution even when delivering fibrous rations. The tub can be equipped with one or more feed-out doors depending on the configuration of your buildings.
With the KUHN DG600 terminal, you optimise your time by carefully preparing the quantities of the different ration ingredients. Simply program the rations per head and per batch before loading the TMR mixer. In the following days, all you have to do is validate or modify the number of animals in each batch so that the weighing unit automatically indicates the quantities to be loaded. And if you want to take data management a step further, choose the KUHN DG8000-IC terminal.
KUHN DG600 programmable weighing system: your terminal’s interface is intuitive thanks to its double LCD screen that displays the weight and the name of the ingredient simultaneously. You can name your ingredients, distribution points and recipes. Your weighing terminal can store 99 recipes composed of 24 ingredients, and can be used to prepare 48 feed batches. You can program by head or by total weight. You can also generate ingredient consumption reports.
KUHN DG8000-IC programmable weighing system: your weighing terminal can store 99 recipes composed of 24 ingredients each, 99 ingredients, 128 feed batches and 48 customers. You can change the number of animals and the weight of the ingredients on the terminal. You program the terminal using the “DTM IC Cloud” software: by head, total number of animals or percentages.
The KUHN DG8000-IC weighing terminal is compatible with the NIR dry matter measuring system and the feed tracking system (automatic feeding per batch).
You can choose one of these digital devices to run the solutions offered along with the weighing terminals. You can take your new assistant with you everywhere! You’ll be able to control your mixer weighing system during loading and feeding, but also from your office.
The 2 applications KUHN Datamix VIEW and KUHN Datamix CONTROL are pre-installed on your weighing assistant. You’re bound to have all your needs met with the easy-to-use secondary display unit (KUHN Datamix VIEW) and the application that lets you program and perform all the functions of your mixer’s weighing unit from your assistant (KUHN Datamix CONTROL). You can access all the weighing data within a communication range of 90 m around your machine. The signal is automatically reset when you re-enter the range.
For each member of the herd to get their maximum feed intake, the feed-out of the mixed ration must be evenly mixed and distributed across the whole length of the feed passage. It’s important to reduce competition for feed between livestock in the same pen. All animals must get their fair share of quality mixed rations!
When the animals return to the buildings after grazing, providing a homogeneous ration is the best solution to avoid them pushing and shoving for feed.
The PROFILE range features an impressive selection of feed-out solutions to ensure distribution of the rations in all the types of buildings. Whether you have sheds with no separate exit, troughs with retaining rims or very narrow feed passages, feeding tables on both sides of the passage requiring simultaneous distribution, or other constraints requiring distribution from the rear of the machine, you will find what you need in the PROFILE range.
The cross-conveyor can be positioned at the front or rear of the PROFILE range.
As standard, feed can be distributed on the left or right-hand side. The conveyor is driven by a hydraulic motor at each end guaranteeing perfect operation regardless of the rotation direction.
The PVC belt ensures that fodder doesn’t travel back underneath the belt. The feed passage always remains clean after distribution.
As an option, the cross-conveyor can be hydraulically offset by 250 mm to the left or the right of the machine: ideal for keeping fibrous rations away from the tyres of the mixer and getting the fodder closer to the feed barrier!
The FLEXILIFT conveyor is a new alternative to cross-conveyors. It allows for delivery into high troughs (1.200 mm) without protruding from the mixer wagon. FLEXILIFT is available as an option on all PROFILE CL models in the range.
The angle of the belt will depend on the degree of extension: one simple control takes care of both movements.
The FLEXILIFT conveyor is designed with a continuous belt. There is no product loss in the feed passage, unlike standard tilting conveyors and cross-conveyors, which have joints.
The FLEXILIFT conveyor is reversible and symmetrical. Depending on which side you want the raised conveyor on, your KUHN authorised dealer can easily reverse the conveyor during start-up.
|PROFILE 9.1 CL||PROFILE 10.1 CL||PROFILE 11.1 CL||PROFILE 12.1 CL||PROFILE 13.1 CL||PROFILE 14.1 CL||PROFILE 15.1 CL|
|Mixing system||1 vertical auger||1 vertical auger||1 vertical auger||1 vertical auger||1 vertical auger||1 vertical auger||1 vertical auger|
|Maximum width of the loading bucket (m)||<3.02||<2.82||<2.82||<2.82||<3.02||<3.02||<3.02|
|Minimum PTO power requirement kW (hp)||44 (60)||48 (65)||51 (70)||55 (75)||59 (80)||59 (80)||63 (85)|
|PTO speed (min-1)||540||540||540||540||540||540||540|
|Output mini/maxi (l/min) at 180 bar (pressure required)||20-50||20-50||20-50||20-50||20-50||20-50||20-50|
|Minimum tractor hydraulic requirement with direct control||1 DA for door, 1 DA for cross conveyor and 1 DA per additional function||1 DA for door, 1 DA for cross conveyor and 1 DA per additional function||1 DA for door, 1 DA for cross conveyor and 1 DA per additional function||1 DA for door, 1 DA for cross conveyor and 1 DA per additional function||1 DA for door, 1 DA for cross conveyor and 1 DA per additional function||1 DA for door, 1 DA for cross conveyor and 1 DA per additional function||1 DA for door, 1 DA for cross conveyor and 1 DA per additional function|
|Minimum tractor hydraulic requirement with electric control (optional)||1 SA with free return||1 SA with free return||1 SA with free return||1 SA with free return||1 SA with free return||1 SA with free return||1 SA with free return|
