The KUHN MASTER 113 reversible mounted ploughs.

Light and robust and at the same time, offer the best ploughing quality with simple and precise adjustments.


Find your nearest dealer Download Brochure
The MASTER 113 range meets the needs of farmers looking for a plough combining lightness and robustness. Available from two to five bodies, this machine is suitable for tractors from 90 to 150 hp for light to medium soils. The MASTER 113 ploughs meet your requirements through increased reliability, simple adjustments and quality ploughing. The equipment and options available allow you to customise your MASTER 113 to best meet your needs. The MASTER 113 mounted plough brings you KUHN's expertise acquired for more than 100 years in the ploughing domain. Investing in a MASTER 113 is choosing quality to serve your profitability.

Your benefits

A simple and robust design

A limited traction requirement

The MASTER 113 benefits from reduced weight allowing its use with small tractors. This way, you can achieve precise and clean ploughing with a 90 hp tractor equipped with a MASTER 113 four body plough. With its limited weight, the MASTER 113 means you can exploit the tractor’s full power for a high work rate while limiting the compaction of your soils. You improve your farm’s profitability thanks to a better optimisation of mechanisation costs. The MASTER 113 is particularly suitable for light to medium soils and allows you to work at different cutting widths: 14, 16 and 18 inches depending on your working conditions (relief, field size, plough profile, power available, etc.).

Ultra-simple and intuitive use

The MULTI-MASTER 113 is very simple use, with a spool for adjusting the width of the first body and another for the turnover.

The cutting width is easily changed by rotating the three screws on the frame. The three-point hitch is robust to ensure your plough’s longevity. The bolts are placed at the edge of the frame to take advantage of the strength of the beam without adding supplementary material.

When travelling on the road, the MASTER 113, is equipped with a transport wheel. An easy-to-access pin locks the plough for secure transportation.

Simple settings and quality of use

Large clearances

With its significant under-beam and inter-body clearances, the MASTER 113 is able to bury large volumes of residues while maintaining an exceptional ploughing quality. In fact, the MASTER 113 plough with Safe-T safety device offers a 75 or 80 cm (optional) under-beam and a 90 or 102 cm inter-body clearance. If you are looking for manoeuvrability and lightness, you should opt for a 90 cm inter-body clearance. On the other hand, if you plough mainly in large quantities of residues, we recommend a 102 cm clearance for improved soil flow capacity.
As for the MASTER 113 with NSH (Non-stop Hydro-Safe) safety device, it has a 70 cm under-beam clearance and a 90 cm inter-body clearance to reduce the weight at the rear.

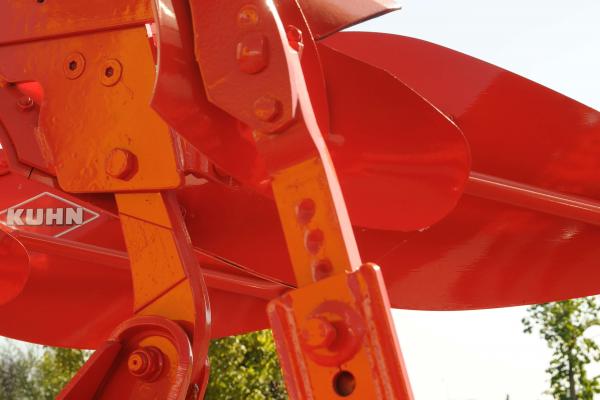

Simple and precise settings

All the settings of MASTER 113 are simple and easy to access to ensure the best user comfort.
In one action and without the aid of any tool, you combine front furrow and alignment adjustments. The working width of the first body is controlled by moving the parallel linkage and in the same time, the angle adjusts itself for the perfect alignment of the plough.
The tool-free vertical adjustment is achieved with a lower stop to minimise stress on the turnover shaft and bearings.
The inner-tyre setting can be adapted by simply adjusting the tie rods. The MASTER 113 can work with tractors with an inner tyre dimension of up to 1.55m.
The skimmers are independent right and left. Their sleeve assembly ensures the skimmer maintains its position without risk of sliding or rotating. Adjustment is simple and precise in two dimensions: in height and forward or rearward position.

Safe-T or NSH safety device

  • Safe-T safety device:
    The Safe-T safety device fully protects the plough while maintaining a high level of release. A real asset in heavy soils! The special feature of the KUHN Safe-T safety device is that the bolt is broken by traction rather than shearing, guaranteeing repeatable, long-term release without risk of damaging the supports. This system also ensures quick and easy replacement of the safety bolt.
  • NSH safety device:
    The Hydro-Safe safety device ensures perfect adaptation to working conditions. The general design of the Hydro-Safe safety device provides an increasing or decreasing release curve when an obstacle is encountered for unequalled return to the soil. Maintenance and wear are limited since the forces are applied on a single line, that of the beam, providing total protection of your plough.


Technical characteristics

Beam configuration3E / 4 (3+1) / 4E / 5 (4 + 1)
Max tractor power66/90 / 88/120 / 110/150
Traction bolt protection
Weight (kg)795/985/1158/1370
Working width (in/cm)14'' - 16'' and 18'' 35 - 40 and 45cm
Clearance (cm) (Under Beam) - 70 and 75 (Point to Point) - 90 or 102
NSH leg protection
Weight (kg)940/1160/1363/1605
Working width (in/cm)14'' - 16'' and 18'' 35-40 and 45cm
Clearance (cm)(Under Beam) 70 (Point to Point) 90
