A lighter row unit (95kg) means lower power requirement. That’s 25 kg lighter than MAXIMA 3.
The KOSMA chassis has been specially designed to give you 20 to 30% more lifting capacity (vs the MAXIMA 3 with the same equipment).
By using smaller 4-cylinder tractors with little ballast you will benefit from less soil compaction when seeding, fuel savings and ensuring uniform emergence.

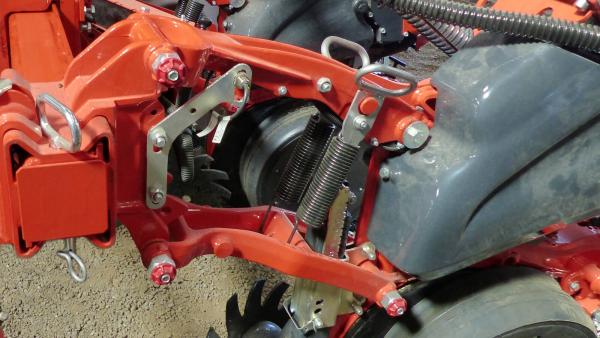

Machine quality is priority at KUHN and the KOSMA unit is no exception. KOSMA precision seed drills are built with high quality materials and have an optimised design making them light but highly robust.
These seed drills are hard wearing, and maintenance is reduced to a minimum, so return on investment is guaranteed.
For high-precision seeding, the seeding unit must be very stable to maintain a constant seeding depth which is critical for even emergence. The KOSMA unit is equipped with an effective coulter-pressure system where 12.5 or 25 kg can be added up to a maximum of 120kg to provide excellent ground following
Just like the MAXIMA 3, the KOSMA’s system of coulter pressure adjustment is simple and tool-free. With no wearing parts, the maintenance is kept to a minimum.
Approved by the TOP AGRAR 2017 test, this high-performance system is made possible by the 262 mm, large-diameter seed-selector disc, which selects seeds perfectly. Just like the MAXIMA 3, the KOSMA unit is capable of drilling any seed type by simply changing the disc.
KUHN offers the choice of mechanical or electric-drive distribution.
The mechanical drive system is simple and robust, with the transmission ideally adapted to 45-50 cm spacing of beetroot seeding.
The 48V electric drive system guarantees smooth and continuous rotation for high-precision seeding. The new KOSMA unit with electric drive has many advantages:
Seeding density adjustment from the tractor cab
Application rate adjustment manually or automatically with GPS
Automatic row shut-off using GPS
Seeding precision requires fine and simple adjustments to each unit on your KOSMA precision seed drill. depth can be adjusted in 0.5 cm increments from 1 to 9 cm. Independent spring-mounted gauge wheels, equipped with integrated scrapers, control working depth.
Adjusting coulter pressure and trash-remover height as well as fitting the press wheel are all tool-free operations and easy to do on each row of your KOSMA seed drill.
Working KOSMA seed drills guarantee perfect control of seed spacing and uniform seeding depth.
Using the ISOBUS Section control and Variable Rate Application features, KOSMA seed drills can help you:
To save time and simplify your seeding operations, ISOBUS technology makes it easier to manage your KOSMA seed drill.
The CCI ISOBUS terminal gives you better visibility and increased flexibility. The large, touch screen enables the driver to display and view different essential information simultaneously. With the CCI 1200 ISOBUS terminal, you can view two different applications at the same time (GPS & the machine for example).
(*depending on the application map and soil variations)
Everyone is looking for fast and uniform crop germination, but how this is achieved depends on the conditions. KOSMA precision seed drills can be fitted with 3 types of equipment to give you the best seeding quality:
KOSMA precision seed drills are lighter than the MAXIMA 3. The lighter weight and clever design make for a more economical seed drill. But KOSMA machines are no less effective, and provide the same seeding precision in well cultivated soil as the MAXIMA 3 range.
For farmers and smaller contractors
KOSMA M: the rigid seed drill for sowing maize and sunflower
The KOSMA M’s fixed chassis is light weight (200 kg lighter than a MAXIMA 3 M). With its compact linkage system, it creates very little overhang, so is the ideal solution when used in combination with a power harrow. The KOSMA M reduces soil compaction, especially in light and airy soils. It can be fitted with 2×260 litre or 1×950 litre fertiliser hoppers to reduce the number of passes required
KOSMA TS: Ideal for use in combination with a power harrow
KOSMA single-telescopic seed drills are extremely versatile with the possibility of seeding in combination with a power harrow. With the KOSMA TS, you will benefit from all of KUHN’s expertise in this simple and economical seed drill:
A simple and robust chassis with 6 rows that can be fitted with a 950 litre fertiliser hopper
Lighter weight (1180 kg) with compact linkage system to keep overhang to a minimum
A choice of mechanical or electric drive system to meet the needs of precision agriculture
KOSMA TD: Double telescopic for a transport width of 3 metres.
For contractors looking for a compact machine, which can fold quickly and easily from the cab. The KOSMA TD weighs only 1290 kg which is 18% less than the MAXIMA 3 TD, so it can be used with a smaller tractor for spring seeding. This more-compact machine reduces pulling torque as well as power requirement. With the double-telescopic chassis it is possible to fit a 950L fertiliser hopper and non-stop disc applicators.
The KOSMA R is a mounted, foldable and lightweight machine that reduces soil compaction and is capable of high-quality seeding with tractors from 140 hp. Being 300 kg lighter than the MAXIMA 3 R, the KOSMA R reduces soil compaction as well as fuel consumption. The lighter weight chassis is ideal for sugar beet as well as for crops such as chicory and rape.
Transform your 8-row seed drill into a 12-row drill with electric drive.
This one machine is capable of seeding at 45 cm spacing as well as 75 cm! Only one investment for optimum operations. It only takes half a day in the workshop to transform the seed drill so that you don’t have to transport seeding rows needlessly when working with the 8-row configuration. The electric system makes it easy to unplug rows instead of disconnecting drive systems.
For optimum seeding quality and increasingly high output, KUHN has specific options for planting beetroot (Stainless steel wheel, clod clearers and trash removers, etc.…) with ultra-precise and fast settings.
The M Select chassis: the maize-sunflower configuration you need
The KOSMA M Select features a simple and robust chassis which suits lower powered tractors perfectly. With its lighter weight and compact linkage system, overhang is reduced. This 8-row model with 70 cm spacing keeps soil compaction to a minimum, especially in light or airy soils. The KOSMA M Select model is fitted with 2x260L or 1x950L fertiliser hopper with double-disc fertiliser applicators that deliver the fertiliser at the right depth.
The TRM Select chassis: the trailed, 8-row seed drill
The KOSMA TRM Select has a high-capacity fertiliser hopper on a short, robust chassis. This trailed 8-row model with 70 cm spacing is also designed for maize and sunflower crops. The KOSMA TRM Select is equipped with a 1350L fertiliser hopper for greater autonomy, and less traction power. It is capable of higher work output than the mounted KOSMA M Select model of the same width. The chassis has a short linkage system which makes it very easy to handle on headlands and stable on slopes.
The TRS chassis: 1 seed drill, 2 configurations
The KOSMA TRS machine is capable of great quality output at high working speeds, with low-power tractors. The 24 rows spaced at 45 cm can be transformed into 16 rows with 70 cm spacing. With the drive wheels at the back of the machine, many seeding-bar configurations are possible. This unique design, with parallelogramme linkage between the seeding bar and the frame of the machine, produces excellent ground contour following. The machine folds to a width of approximately 3.5m for transport. The design of the frame and the light weight of the machine mean that it can be operated with low traction power. The 24-row configuration on a 12m chassis can be pulled with only 150 hp when using no fertilizer.
