Seven models of multi-purpose shredders available in 4 working widths (2.10 m to 3.03 m) for shredding all types of grassy areas and aimed at individual farms or communities.
Find Your Nearest Dealer Download Brochure
The rear hood is adjustable; adjust it to the minimum for shredding slightly dense vegetation or for maximum mulching; adjust it to the maximum opening when shredding dense vegetation or if you want to work faster, at as lower power requirement.
Front or rear attachment is possible. The BPR 100 series shredders can be coupled to the front or the rear of the tractor without any mechanical assembly/disassembly. When mounted on the front, the tractor does not drive over the plants first, enabling a more even shredding. Work can also be carried out in a front and rear combination, with an offset arm verge shredder or a hedge and grass cutter.
The hitch is higher for coupling to largest tractors, up to 230 hp. The top link remains floating to improve ground following. The robust lateral drive consists of five Powerband belts and an automatic tensioning system to withstand the most extreme work stresses. The shredder is also equipped with a 580 mm hydraulic side offset.
The 8 rows of tools arranged in helical layout on the rotor ensure perfect suction and consistent distribution of residues on the ground at the rear of the rotor. In addition, the shredding casing is equipped with two counter knives (one straight and one notched) for impeccable shredding.
Adapt the machine to your needs by selecting the tools that are best suited::

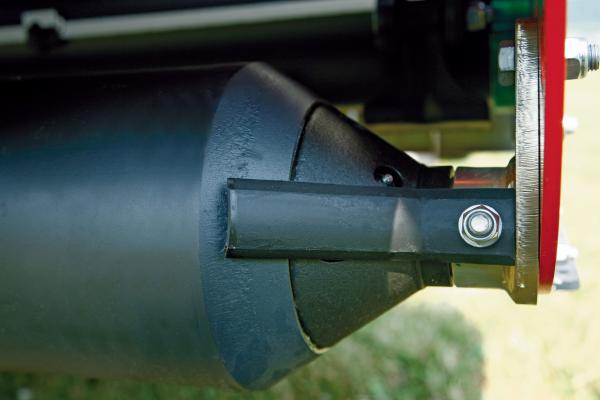

Controlling the working height is essential to shred efficiently and preserve the plant cover. The BP 100, BP 100 PRO and BPR 100 series shredders can be equipped with:
The hitch frame design composed of a reassembled structure is particularly robust. The shredding casing is reinforced as standard with a 4 mm sheet metal lining for increased service life.
BP, BPR and BPR PRO 100 series shredders are fitted with:
| Model | BPR 210 | BPR 240 | BPR 280 | BPR 305 |
|---|---|---|---|---|
| Working width (m) | 2.10 | 2.37 | 2.79 | 3.03 |
| Transport width (m) | 2.27 | 2.55 | 3.00 | 3.34 |
| PTO speed (min) | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Minimum tractor power requirement (kW/hp) | 51/70 | 59/80 | 66/90 | 74/100 |
| Max authorized DIN motor power (kW/hp) at 1,000 min | 129/175 | 129/175 | 129/175 | 129/175 |
| Attachment | 3-point, cat.2 - reverse drive - fixed or floating | 3-point, cat.2 - reverse drive - fixed or floating | 3-point, cat.2 - reverse drive - fixed or floating | 3-point, cat.2 - reverse drive - fixed or floating |
| Lateral offset (mm/in) | 520 | 580 | 580 | 580 |
| Free wheel | Integrated in the gearbox | Integrated in the gearbox | Integrated in the gearbox | Integrated in the gearbox |
| Rotor drive | 4 | 3 | 3 | 5 |
| Rotor diameter (mm/in) | 465 | 465 | 465 | 465 |
| Rotor speed (min) | 1,833/1,960 | 1,833/1,960 | 1,833/1,960 | 1,833/1,960 |
| Linear speed of tools (m/s) | 45 | 45 | 45 | 45 |
| Number of articulated scoop knives | 48 | 48 | 48 | 48 |
| Number of hammer knives | 22 | 24 | 28 | 32 |
| Number of long hammer knives | 44 | 48 | 56 | 64 |
| Number of universal knives with stubble pallets | ||||
| Number of universal blades | 54 | 60 | 72 | 78 |
| Counter blade | 1 notched, 1 smooth | 1 notched, 1 smooth | 1 notched, 1 smooth | 1 notched, 1 smooth |
| Side skids | ||||
| Height adjustment | Roller with adjustable ends | Roller with adjustable ends | Roller with adjustable ends | Roller with adjustable ends |
| Roller diameter (mm/in) | 220 | 220 | 220 | 220 |
| Weight with equipment (kg/lbs) | 870 | 950 | 1,020 | 1,100 |
